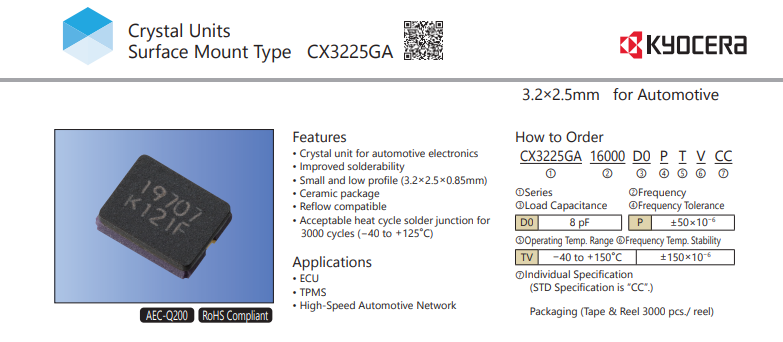

CX3225GA京瓷车规晶振无源3225晶振封装
订购热线：0755-33270075
| 品牌 | 型号 | 频率MHZ | 尺寸mm | 负载电容 |
| 京瓷KYOCERA | CX3225GA09843D0PTVZ1 | 9.84375M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA09843D0PTVTT | 9.843M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA10000D0PTVTT | 10M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA10000D0PTVZ1 | 10M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA12000D0PTVCC | 12M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA12000D0PTVZ1 | 12M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA13560D0PTVCC | 13.56M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA13560D0PTVZ1 | 13.56M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA16000D0PTVCC | 16M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA16000D0PTVZ1 | 16M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA20000D0PTVCC | 20M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA20000D0PTVZ1 | 20M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA24000D0PTVCC | 24M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA24000D0PTVZ1 | 24M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA25000D0PTVCC | 25M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA25000D0PTVZ1 | 25M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA26000D0PTVCC | 26M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA26000D0PTVZ1 | 26M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA27000D0PTVZ1 | 27M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA28636D0PTVCC | 28.636M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA28636D0PTVZ1 | 28.636M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA30000D0PTVCC | 30M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA30000D0PTVZ1 | 30M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA32000D0PTVCC | 32M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA32000D0PTVZ1 | 32M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA40000D0PTVCC | 40M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA40000D0PTVZ1 | 40M | 3.2*2.5*0.95 | 8PF |
- CX3225SA16000D0GTZA2车规晶振,AVX京瓷晶振
- 品牌分类： KDS晶振
晶振类型：车规级晶振
主频：16MHz
频率公差：±20ppm
负载电容值：8pF
工作温度：-40——125
